Ladder Beam
Ladder beam is a beam that resembles a ladder with two tubular members made from standard scaffold tube. Ladder beams have a wide range of uses and can also be used to form part of a more complex structure.

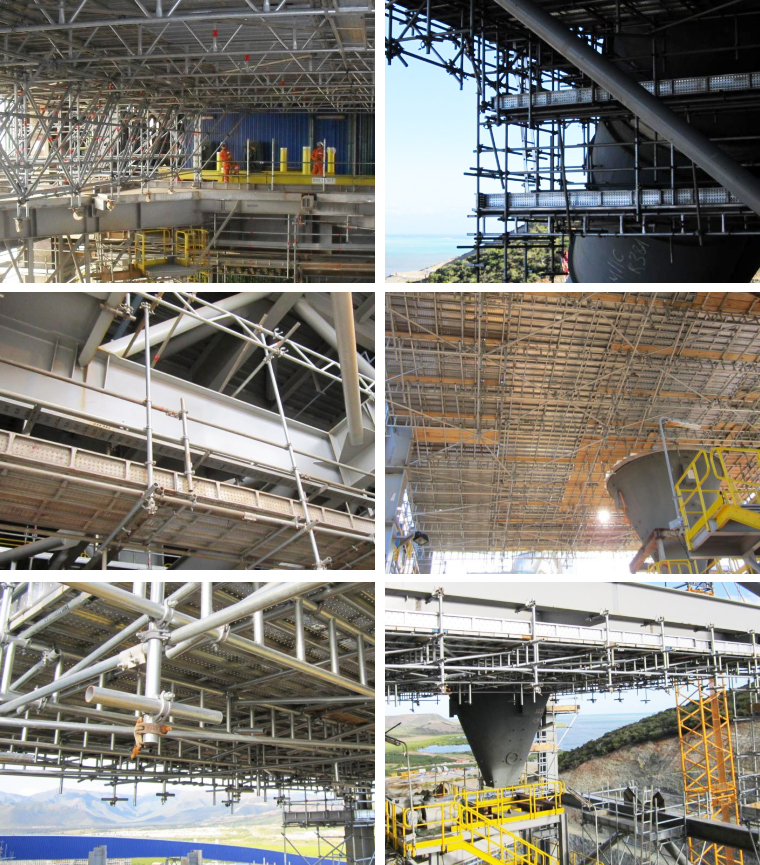

Ladder Beams provide an access opening within scaffolding set ups to allow for material handling on site. Having the beam raised and spanning from one scaffolding bay to the other achieves this as you can then have the bays above supported by the beam, giving the access point for various reasons, e.g. forklifts and trucks.

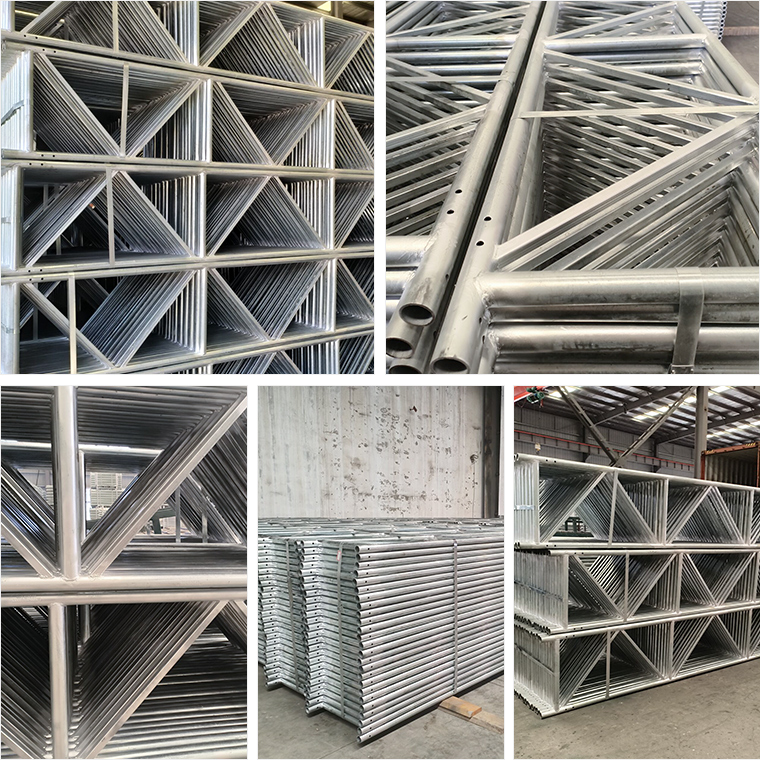

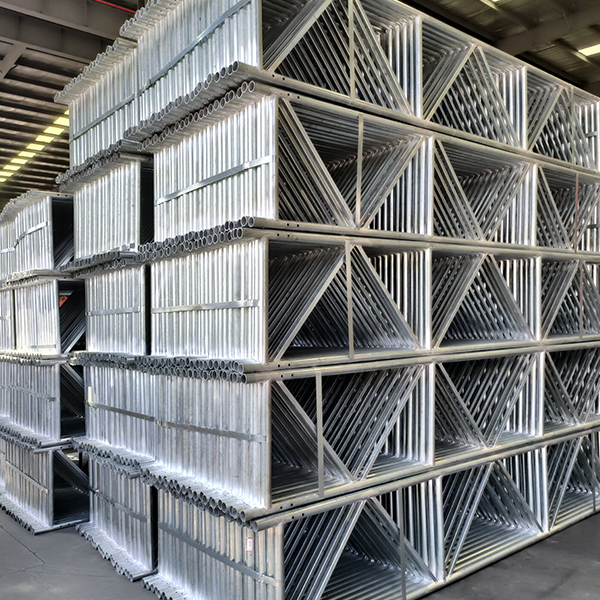

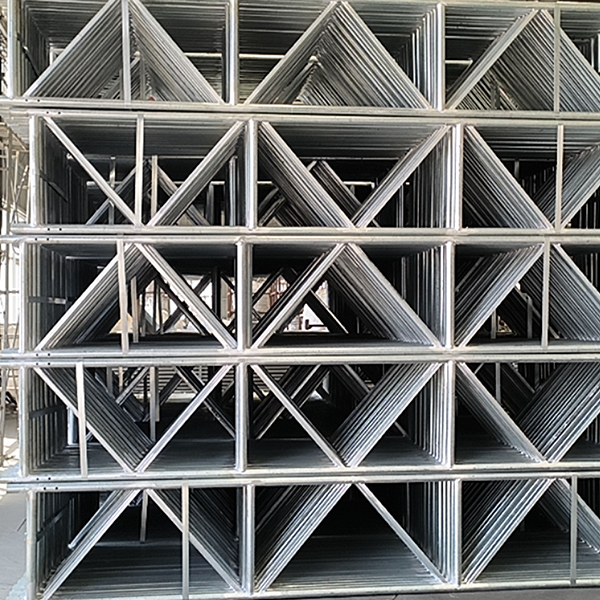

ADTO Scaffolding ladder Beam available from 1mtr-6mtr, length can be customized.
| Product Name | Material | Width | Length |
| Ladder Beam | Q235/Q355 | 300mm | 2m/3m/4m/5m/6m/8m |
| Ladder Beam | Q235/Q355 | 305mm | 2m/3m/4m/5m/6m/8m |
| Ladder Beam | Q235/Q355 | 400mm | 2m/3m/4m/5m/6m/8m |
| Unit Beam | Q235/Q355 | 610mm | 0.9m - 6m |
| Unit Beam | Q235/Q355 | 750mm | 0.9m - 6m |
Features:
1. Surface treatment: Hot Dipped Galvanized / Powder Coated
2. Standard: EN12811/EN10219/EN39/BS1139
3. Material: Q355 & Q235
4. Tube Diameter: 48.3mm
5. Tube Thickness: 3.0mm- 4.0mm.

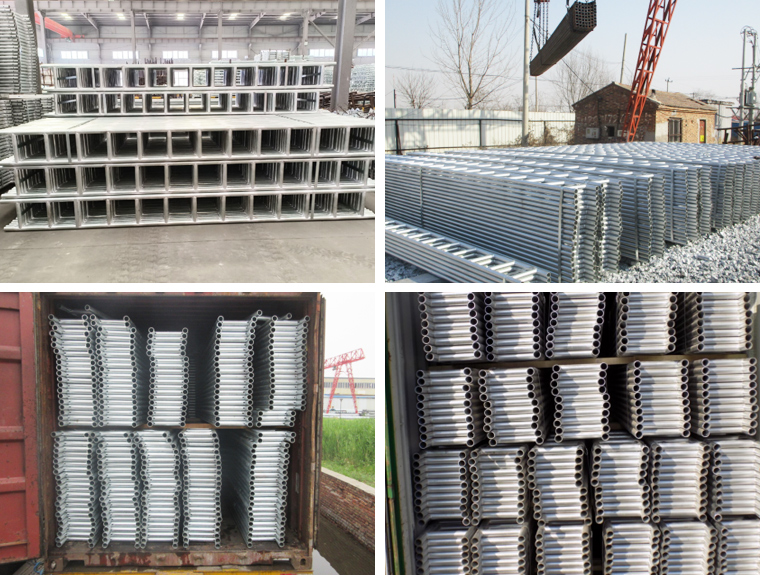

6. Port of loading: Tianjin
7. Samples are available

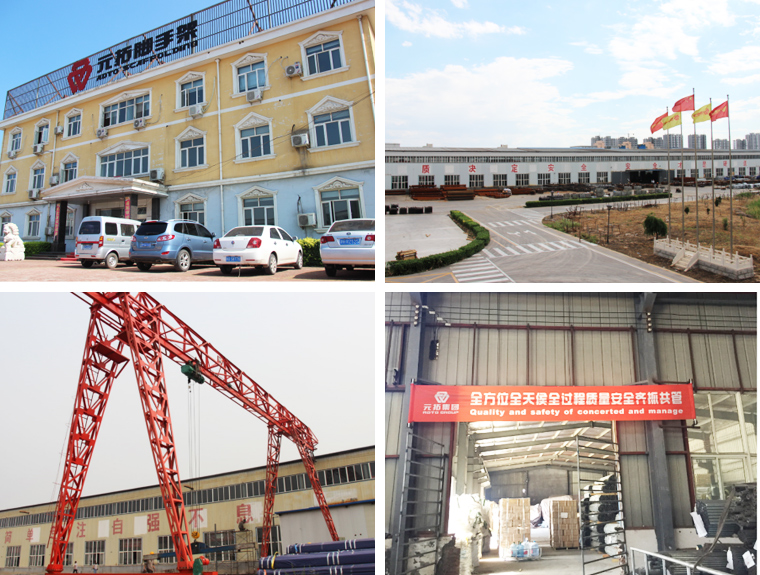

8. Factory is ISO 9001-2000 approved.
9. Performance: good bearing capacity, durable & stable

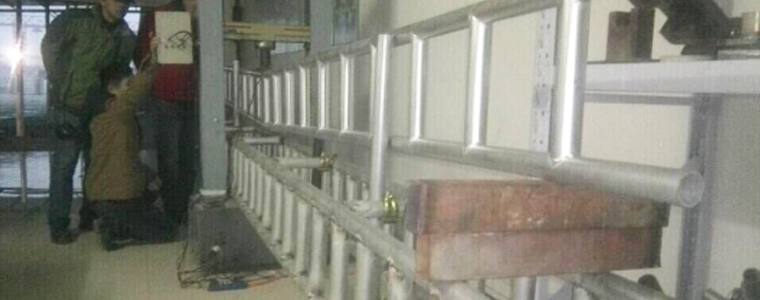

10. Test: SGS, BV or as per your request
11. OEM service is available.
