Pre-galvanized H Frame Scaffolding
Advantages:
1) Reasonable structure, simple assembly, quick operation, safety & reliability;
2) Easy to transport and knock down, high efficiency, save massive manpower and resource.
3) Easy to carry and operate with the weight about 20kg/piece.
4) Assembly & disassembly with hands only.
Components:
frame, Joint Pin, Lock Pin, Cross Brace, Base Jack and platform
A full set of frame includes:2pcs main frame,2 pairs of cross brace and 4 joint pins.
Product Name | Frame Scaffold |
Material | Q195 high quality |
Size Available | 1219*1700 mm,1219*1930 mm,1219*1524 mm,1219*914 mm ,914*1700 mm or other frame scaffolding |
Surface | Pre-galvanized, HDG, Painted |
Types | Mason Frame, A frame, Walk Through Frame etc |
Accessories | 2pcs frames 2pairs cross braces 4pcs pins and 1pcs platform |
Specification | Main Pipe :42*2.0/1.8/2.2 mm ; Inner Pipe :42*2.0/1.5/1.8 mm Or 25*1.5 mm etc frame scaffolding |
Cross Brace | 21.3*1.5 mm Etc As Request Length frame scaffolding |
Joint Pin | 35*1.5*225/210 mm etc frame scaffolding |
Name | Pictures | Specification | Unit Weight kg/pc | Loading details |

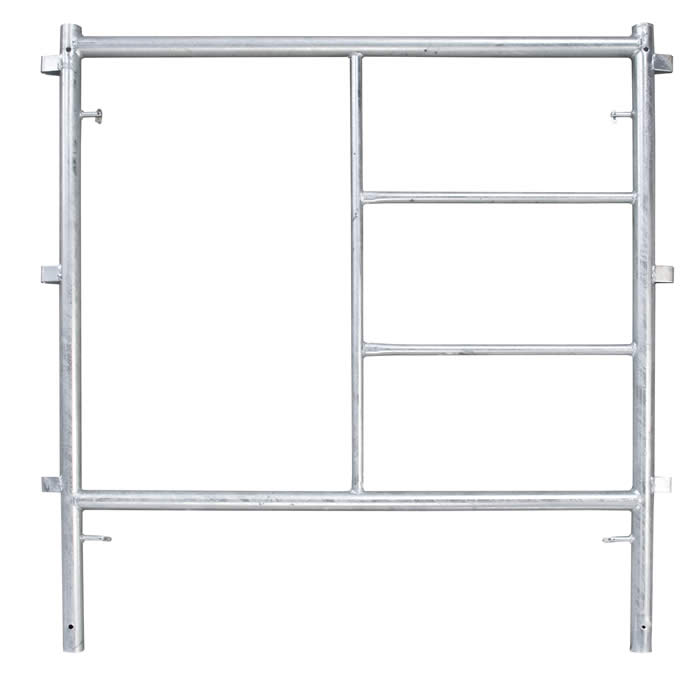

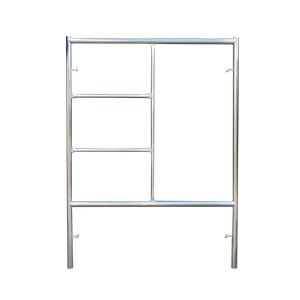

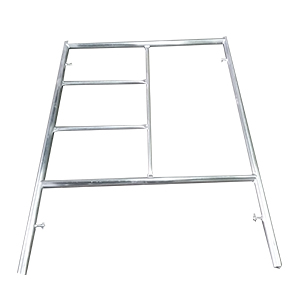

| H-Frame | 1219*1700mm Main tube: 42*2.0mm Inner tube:25*1.5mm Pre-galv. Pipe | 12.99 | 735PCS/ 40HQ | |

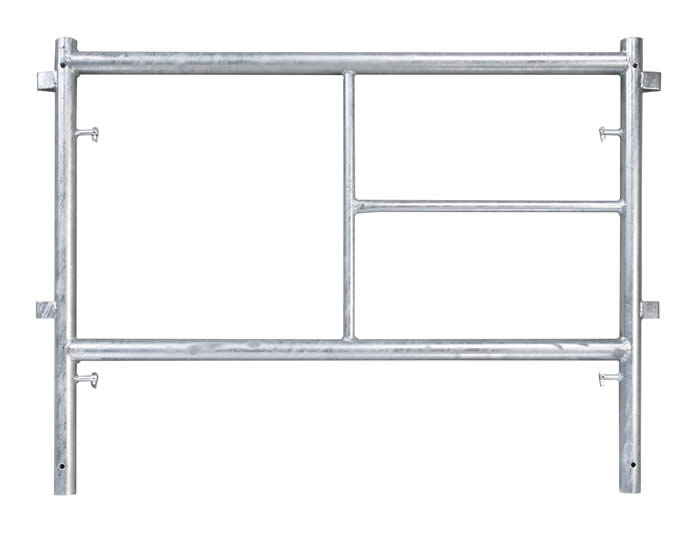

| 1219*1219mm Main tube: 42*2.0mm Inner tube:25*1.5mm Pre-galv. Pipe | 10.30 | 1036PCS/40HQ | ||

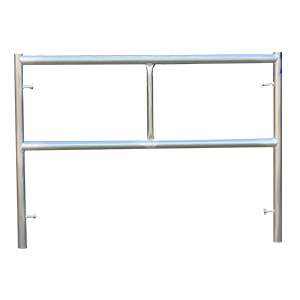

| 1219*914mm Main tube: 42*2.0mm Inner tube:25*1.5mm Pre-galv. Pipe | 7.44 | 1275PCS/40HQ | ||
| Join Pin | φ36*1.5*225mm Pre-galvanized | 0.34 | 48000PCS/20GP | |
| Cross Brace |  | 1829*1219*2198mm φ21.3X1.5mm Pre-galvanized | 3.08 | 8000PCS/20GP |
| 1829*914*2045mm φ21.3X1.5mm Pre-galvanized | 2.87 | 9000PCS/20GP | ||
| 1829*610*1928mm φ21.3X1.5mm Pre-galvanized | 2.71 | 9200PCS/20GP |
