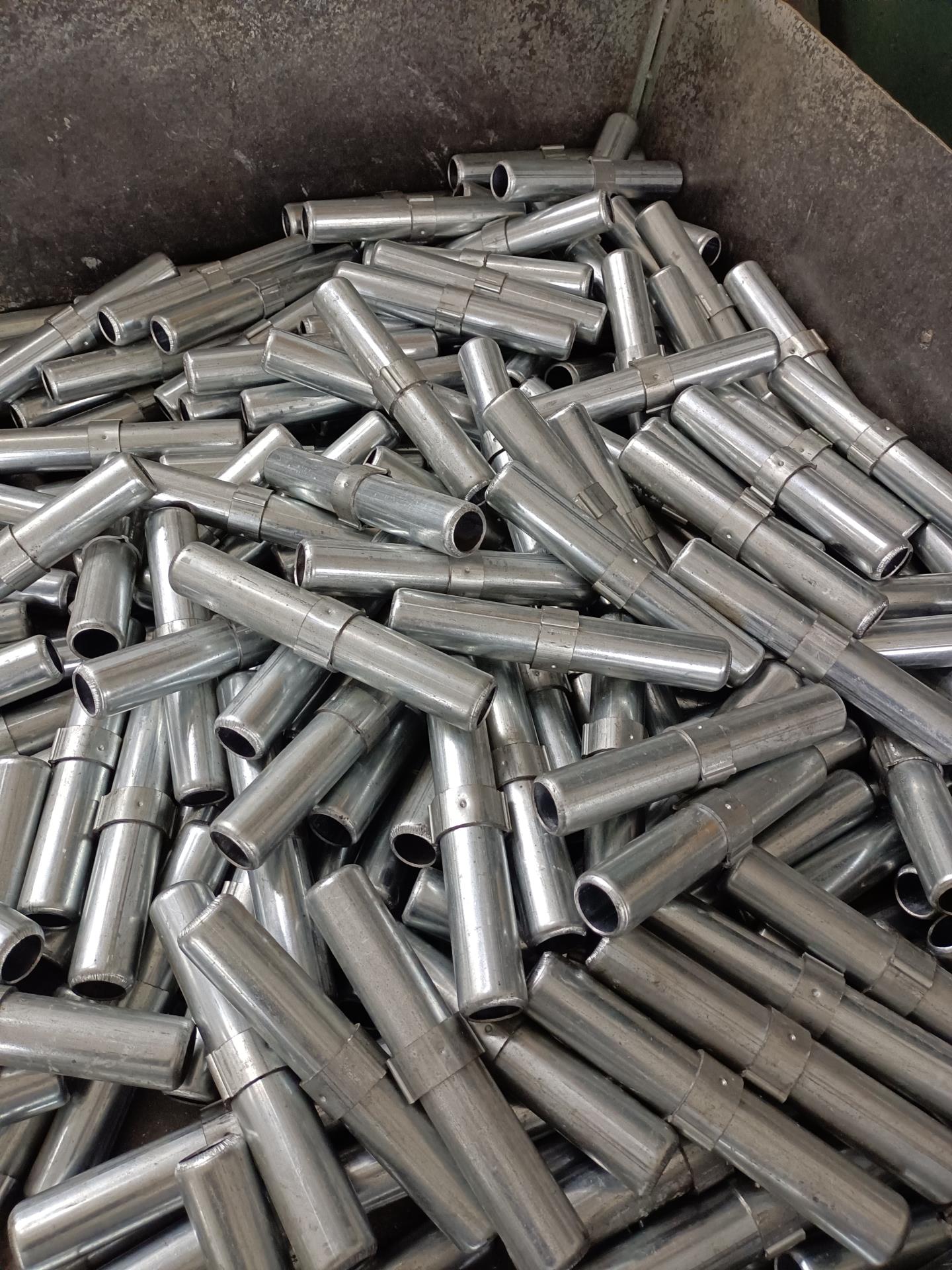

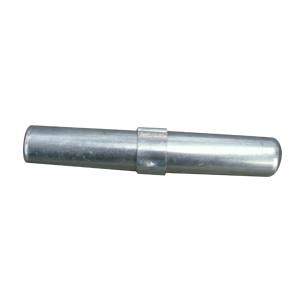

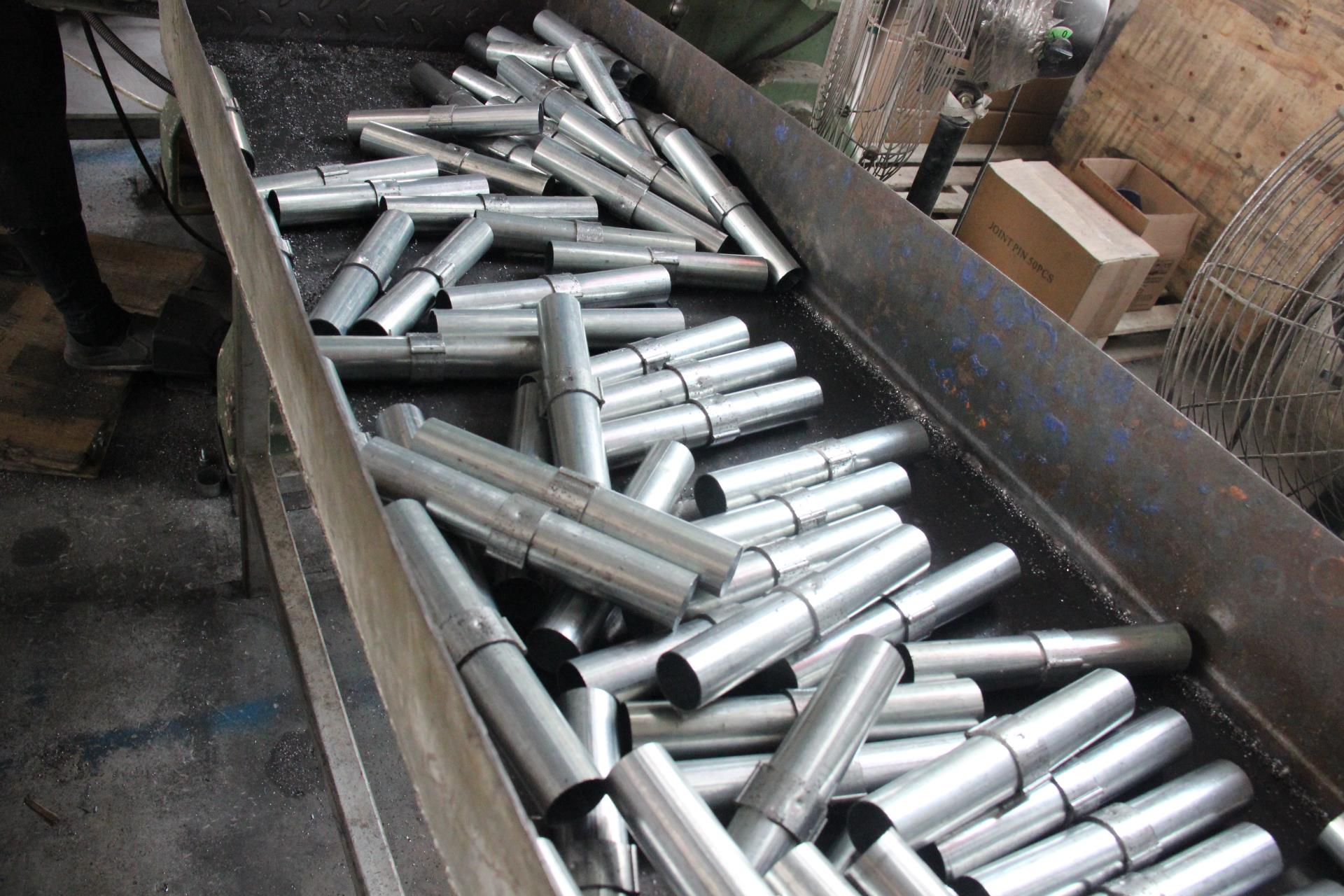

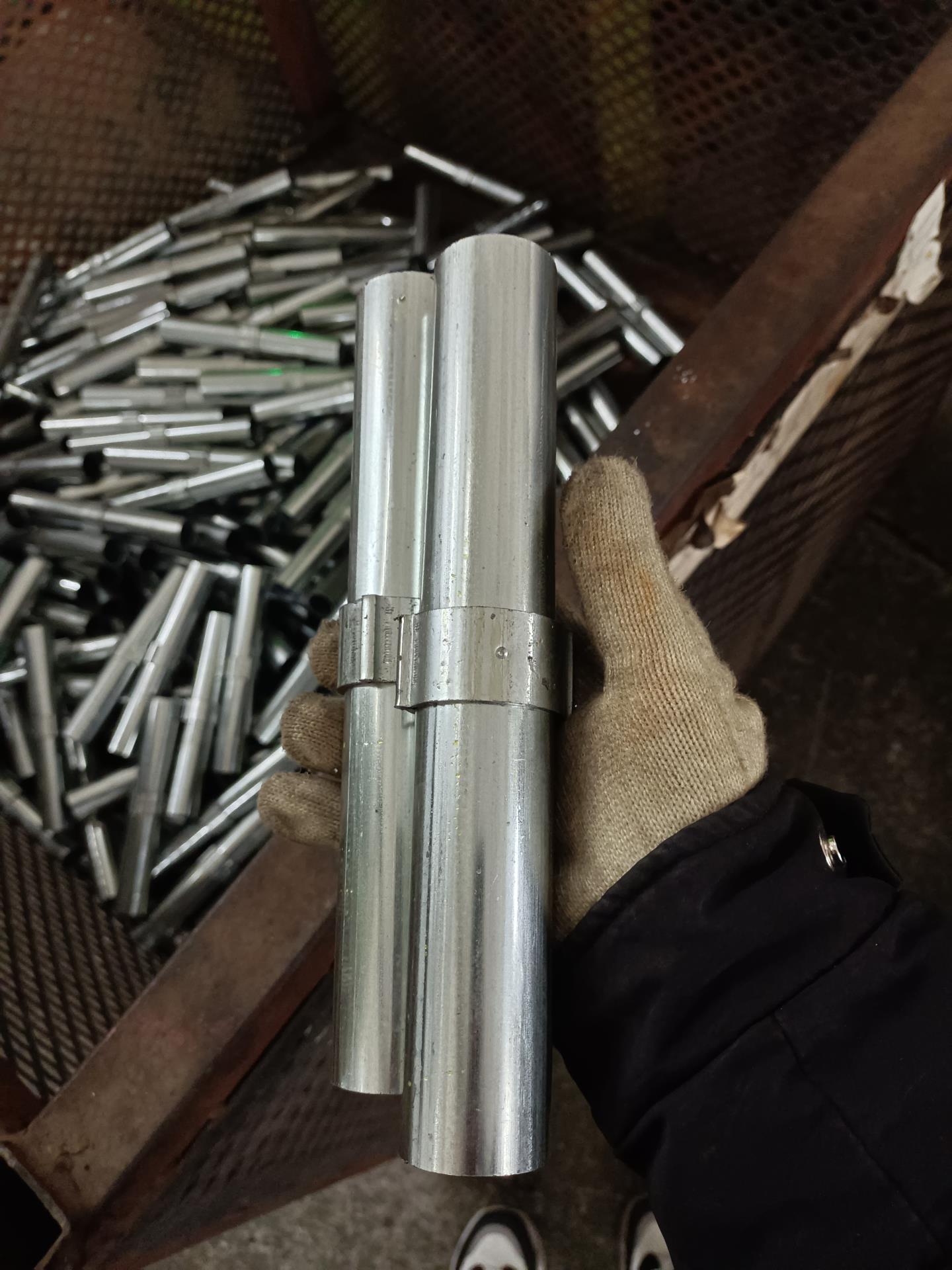

Galvanized Steel Frame Scaffolding Joint Pin for Connecting the Scaffolding
1. Product Description.
1) Details :
1,Material : Q195 steel
2,Surface treatment:pregalvanized
3,Diameter:36mm,etc
4,Thickness:1.0-1.5mm etc
5,specifcation: φ36*1.5*225mm,φ36*1.2*225mm etc
6, Tolerance: as standard or as ur request.
7,Package: by carton,or as ur request.
8. Loading: By container
9,Certificate: SGS,ISO 9001:2008
10,Sample are available
2)Table introduction
| name | specification | unit weight/pc |
| joint pin pregalvansied | φ36*1.5*225mm | 0.34 |
| joint pin pregalvansied | φ36*1.2*225mm | 0.29 |
| joint pin pregalvansied | φ36*1.1*225mm | 0.27 |
2.Application:
| construction | scaffold frames system(including frame cross brace joint pin) are widely used in construction as working platform or support system. Big Project such as bridge, tunnel, petrifaction, shipbuilding, railway, airport, dock industry and civil constraction.etc |
| Indoor and outdoor decoration | scaffold frames system(including frame cross brace joint pin)used in Indoor and outdoor decoration as working platform or support system |
| Housing maintenance | scaffold frames system(including frame cross brace joint pin) used as working platform or support system for housing maintenance |
